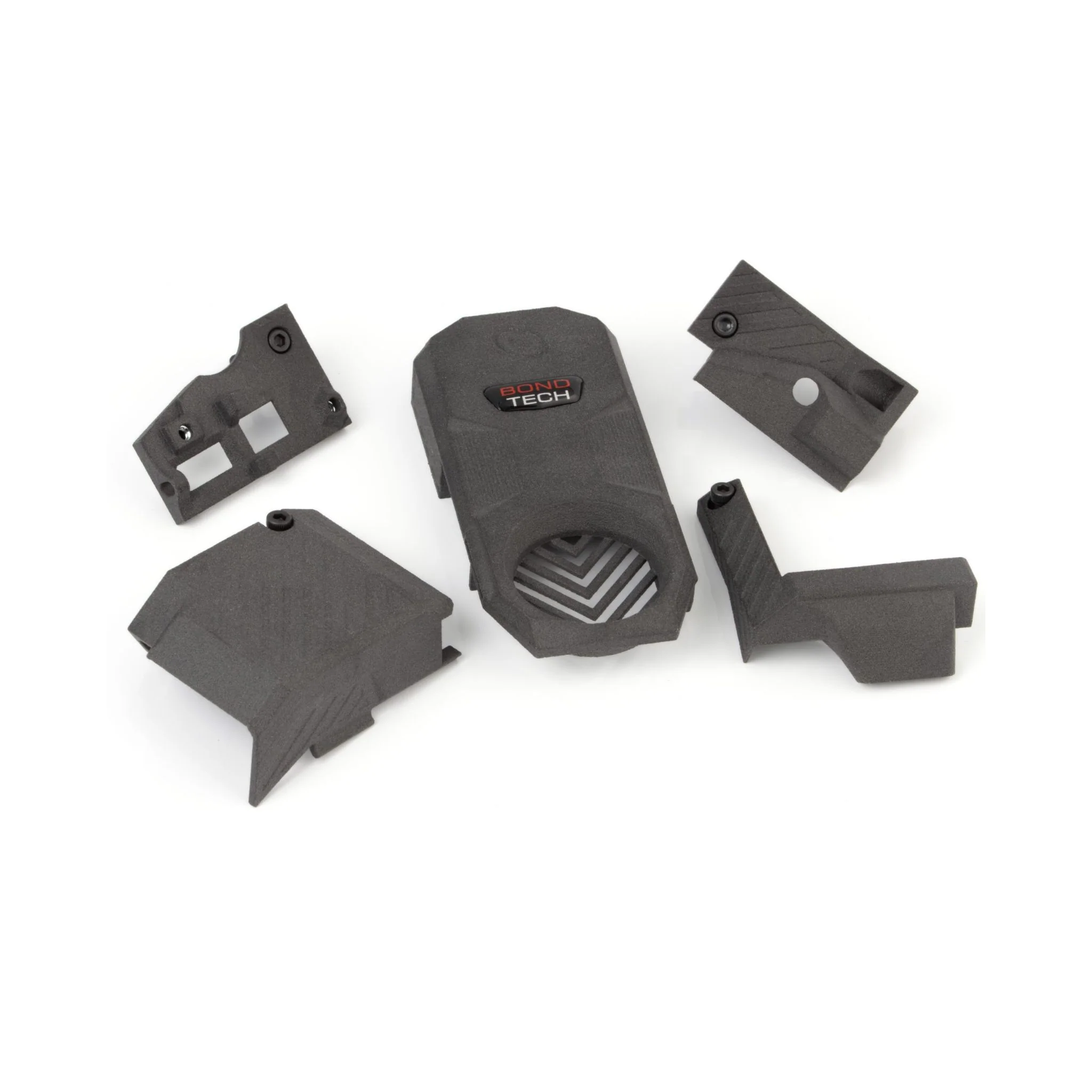

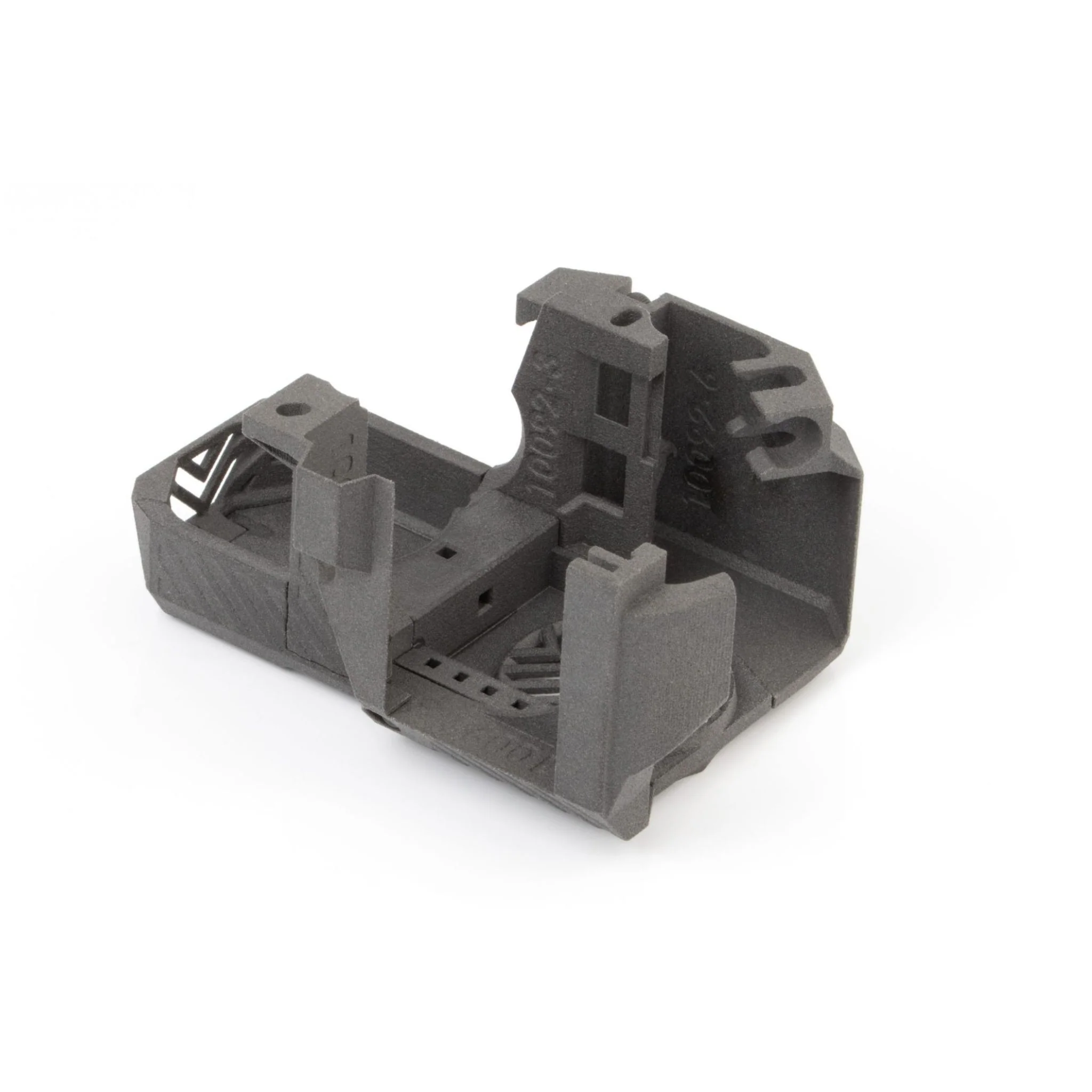

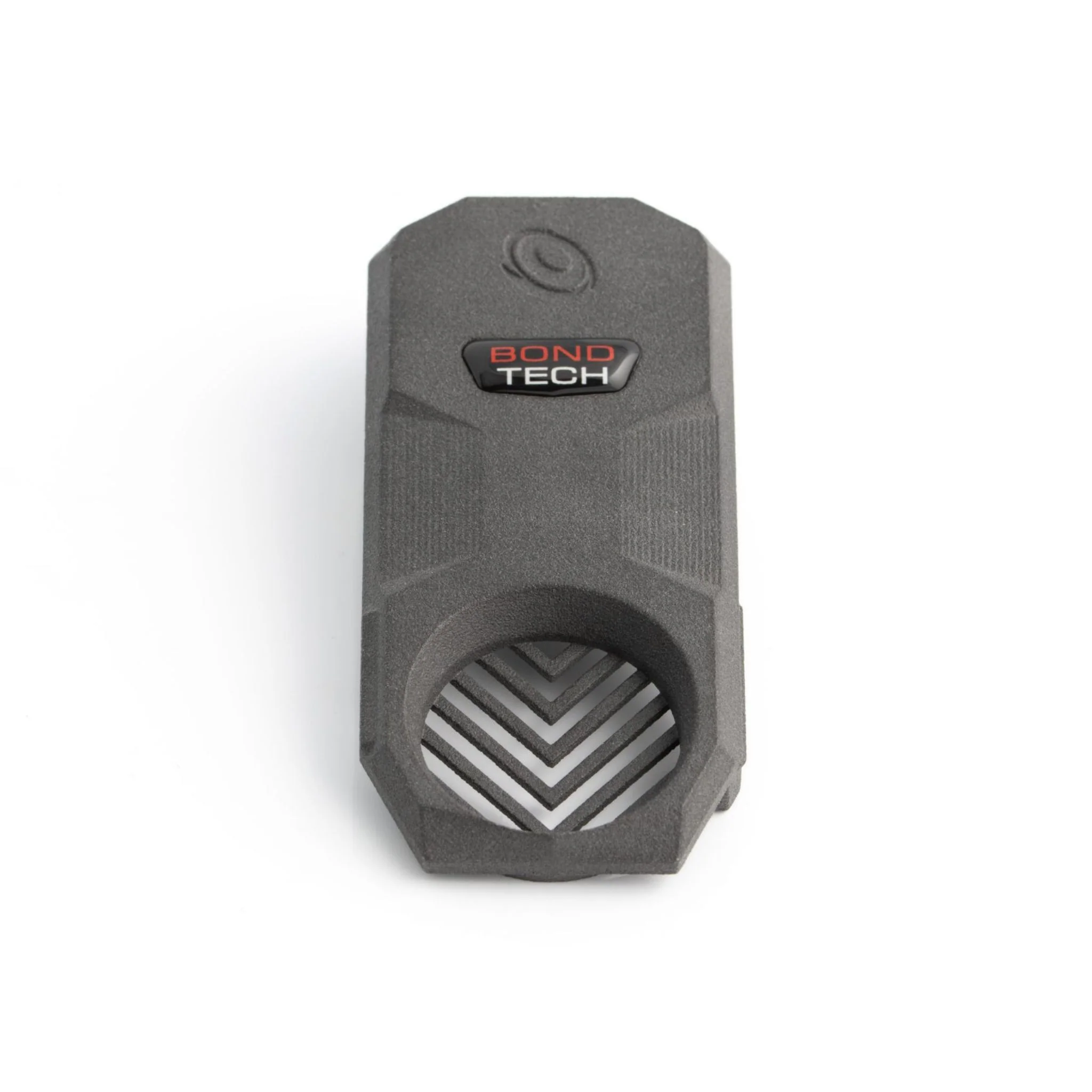

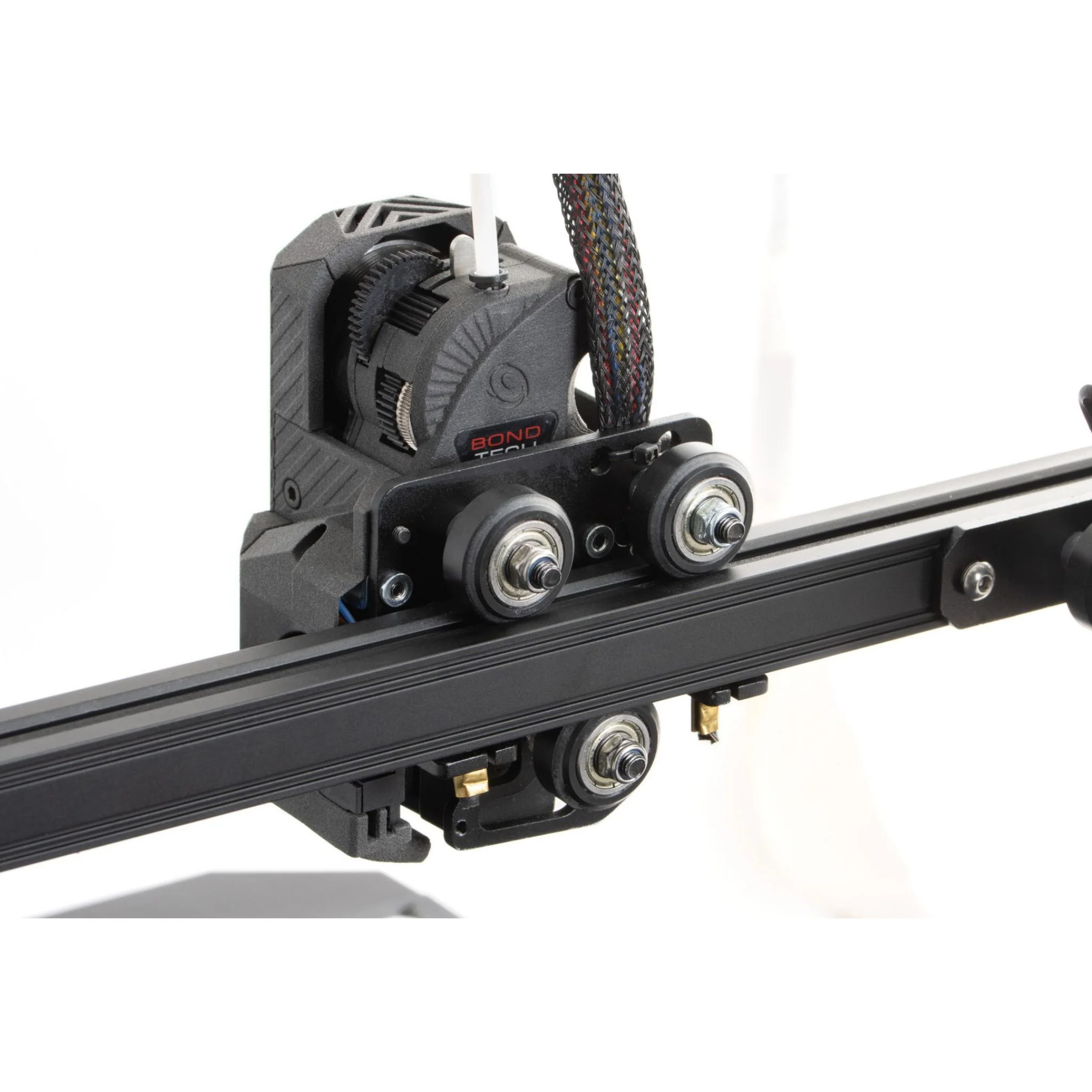

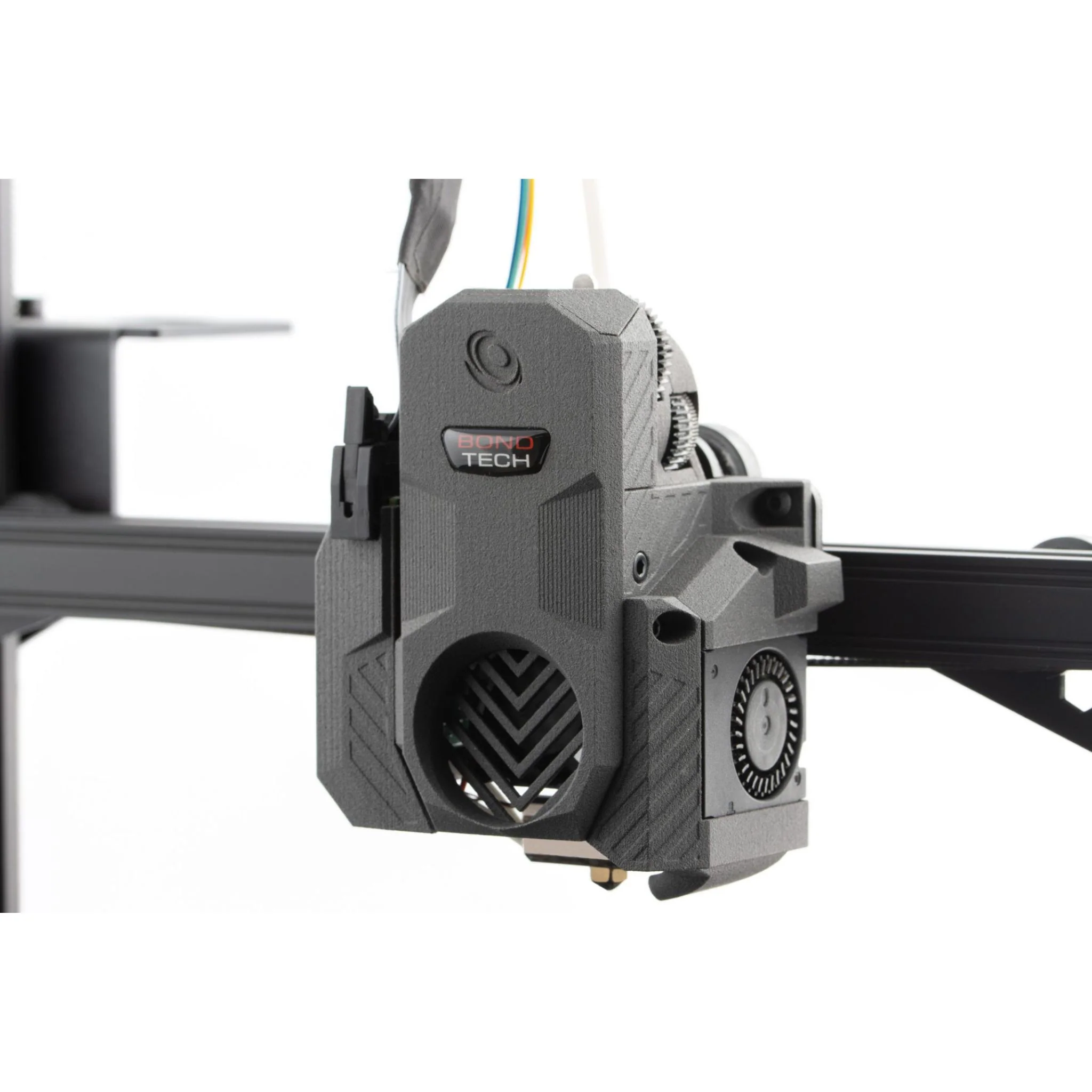

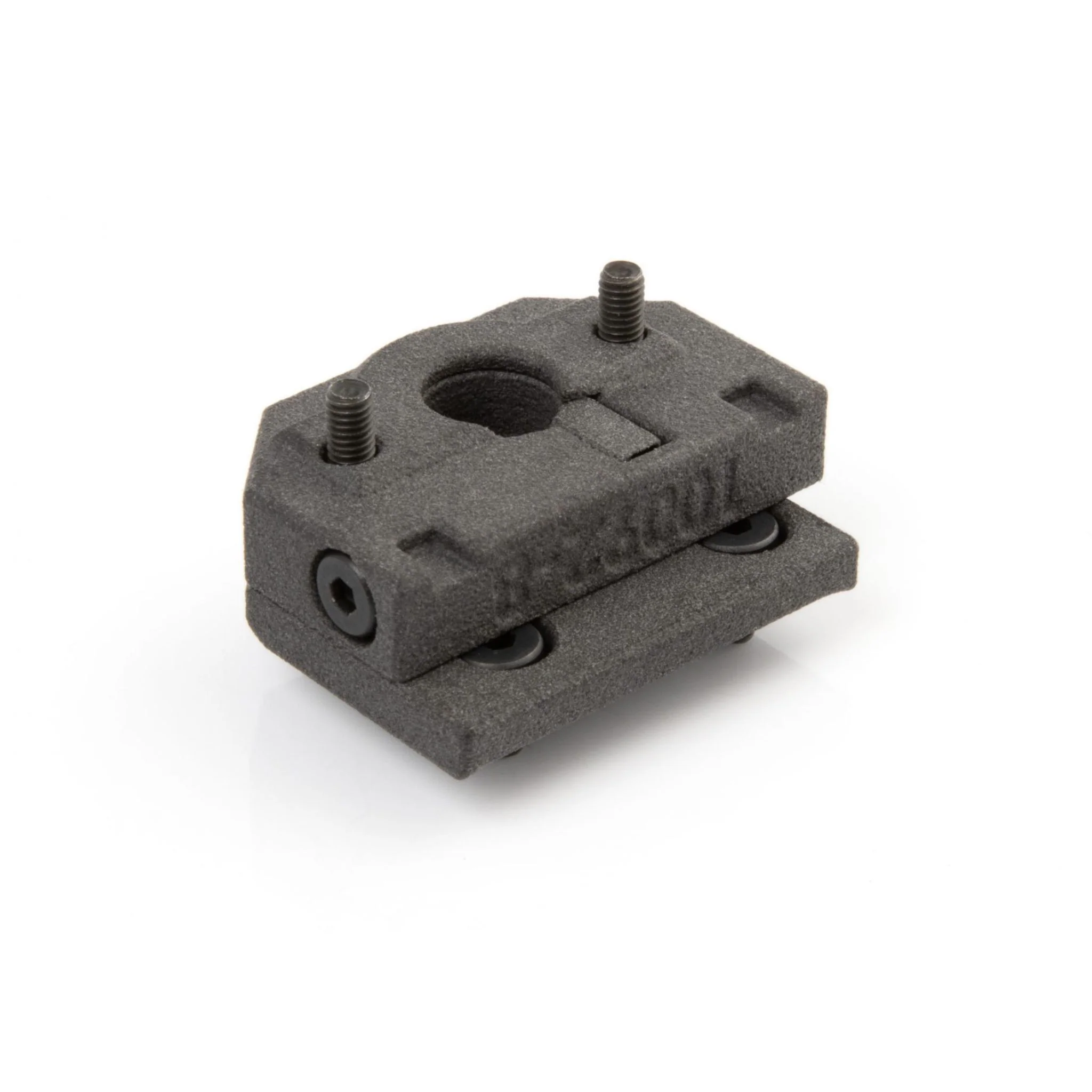

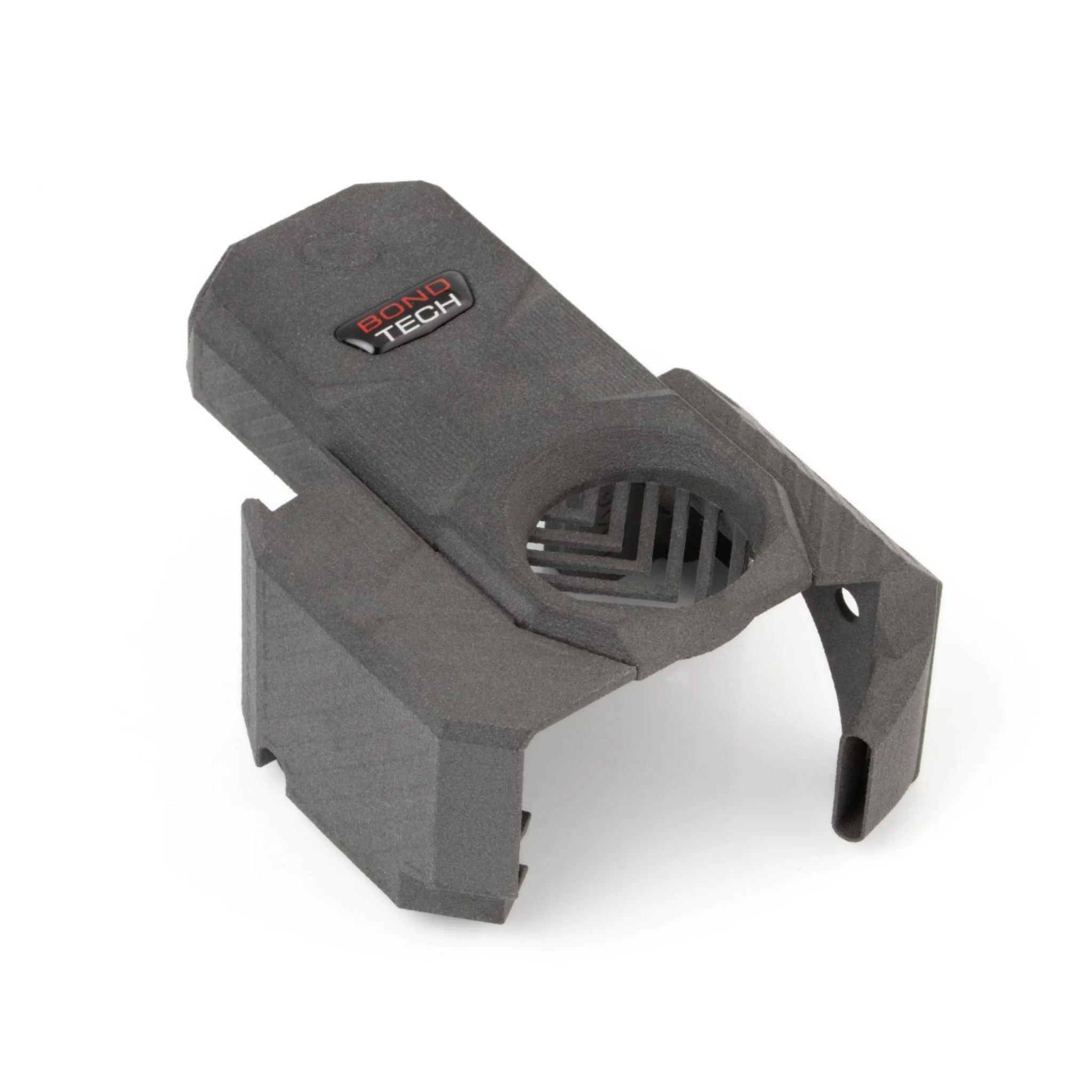

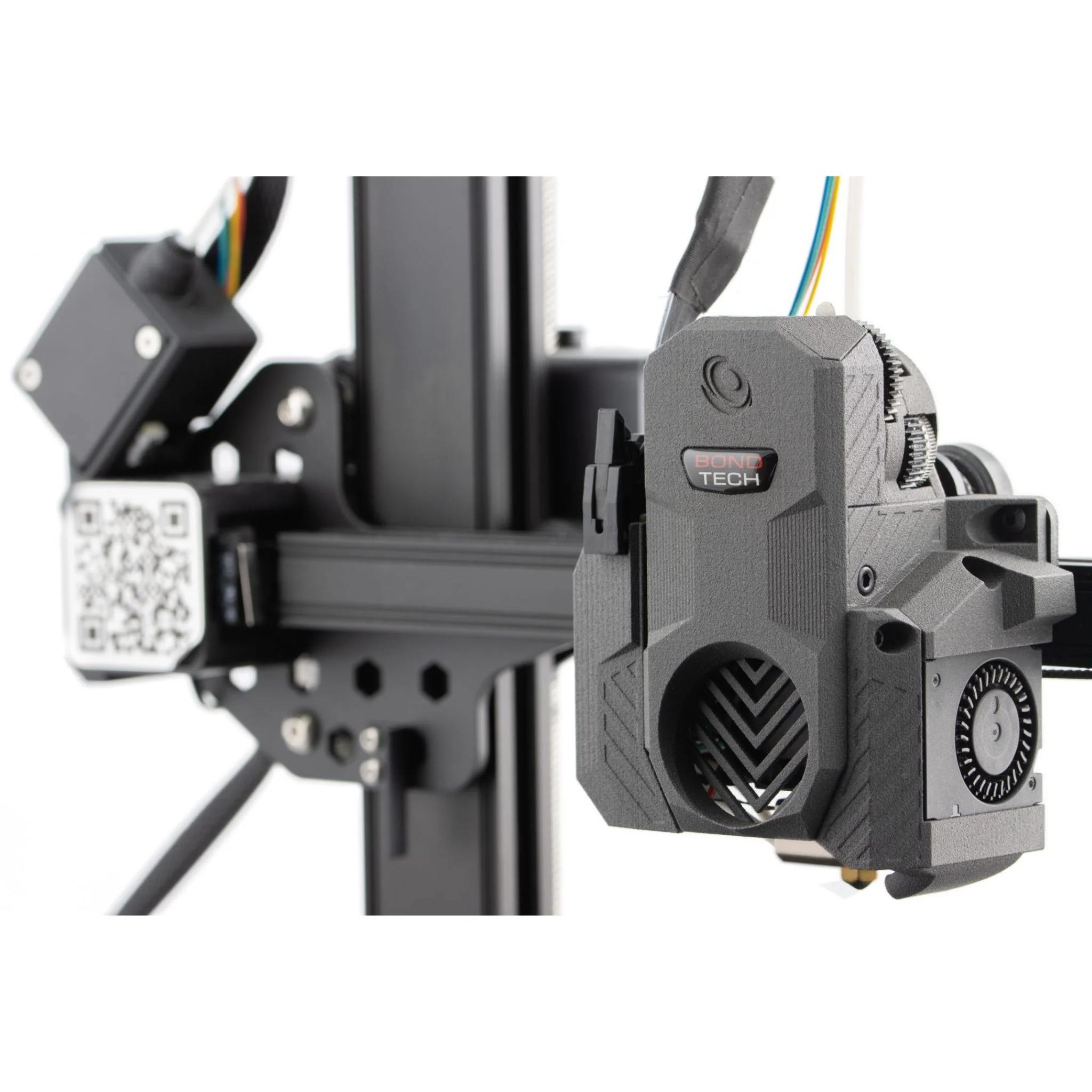

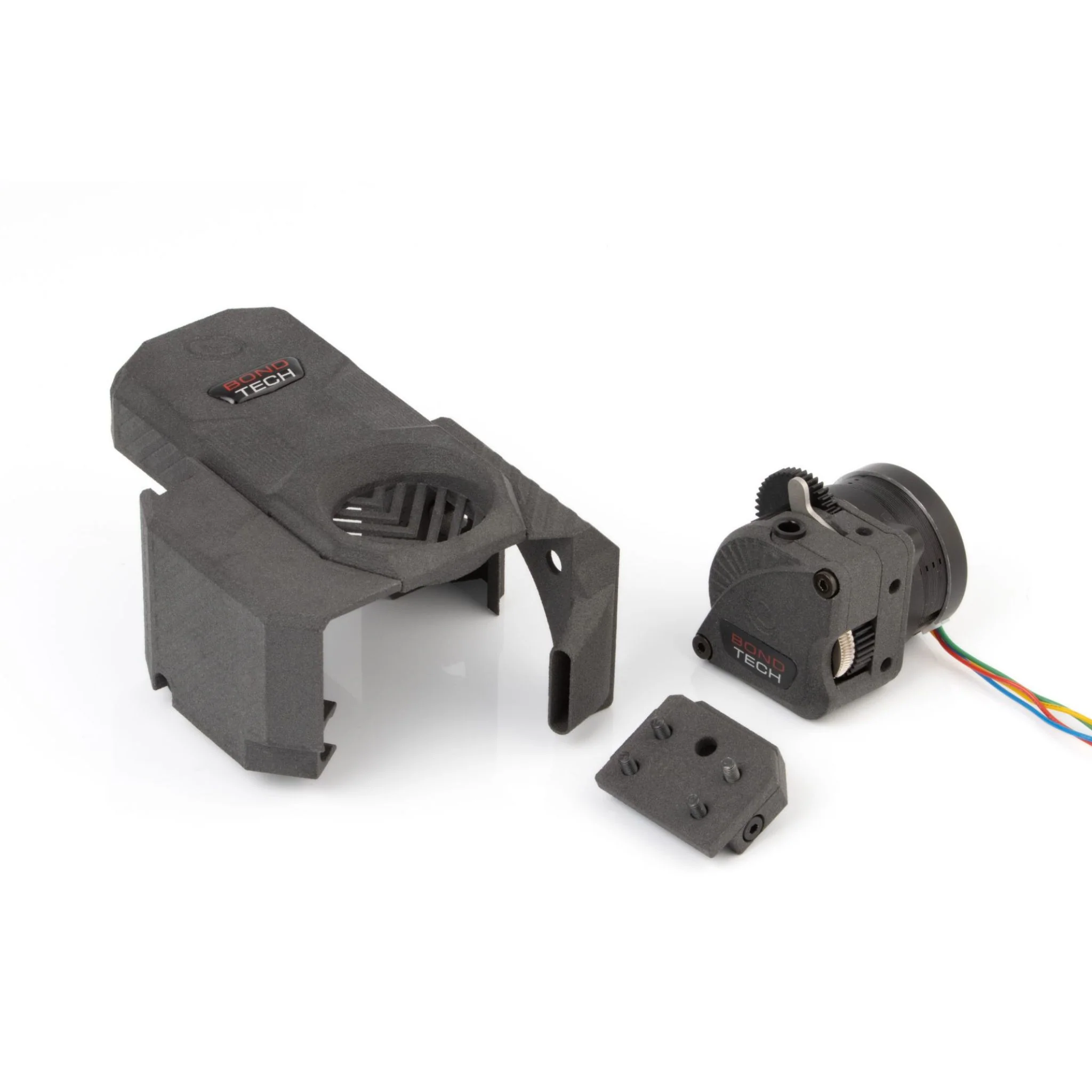

LGX Lite Arrow for Creality
This upgrade kit by Bondtech is used to mount the LGX Lite Extruder onto the following printers:
- Creality CR-6 SE
- CR-6 Max
- CR-10 Smart
Main Features
- Converts the compatible printers from a bowden to a direct-drive setup
- Limits the extra load on the strain gauge to the LGX Lite itself
- Allows for strain gauge leveling since the housing is light and insulated from the extruder
- Compatible with all stock hotends and cooling fans
- Easy to remove for maintenance and service of the hotend and extruder
Please Note: The LGX Lite Extruder is not included and must be purchased separately to use this kit.
Additional Features
- Weight: 65 g
- E-steps : 562 @ 16 microsteps
- Klipper’s rotation_distance : 5.7
- Stepper motor current : 0.45 to 0.65 A max
- Material: Grey polyamide with no dyeing
- Fan Z-Position: Adjustable
- Coating: Wax protective coating
- Max operating temperature : 90°C
- Compatible Hotends (with the addition of an Arrow Hotend Upgrade Adapter Set):
