Bondtech QR-M Extruder
Push Force and Resolution
The Bondtech QR-M Extruder brings the same record level of torque and resolution as the Bondtech QR.
To Fit Mosquito® Hotends
The QR-M extruder is the perfect match for big printers to fit Mosquito® Hotends on direct extruder applications. This extruder is compatible with:
- The Mosquito® Hotend
- Mosquito® Magnum Hotend
- Mosquito® Liquid Hotend
- Mosquito® Magnum+™ Hotend
Versatile Solution

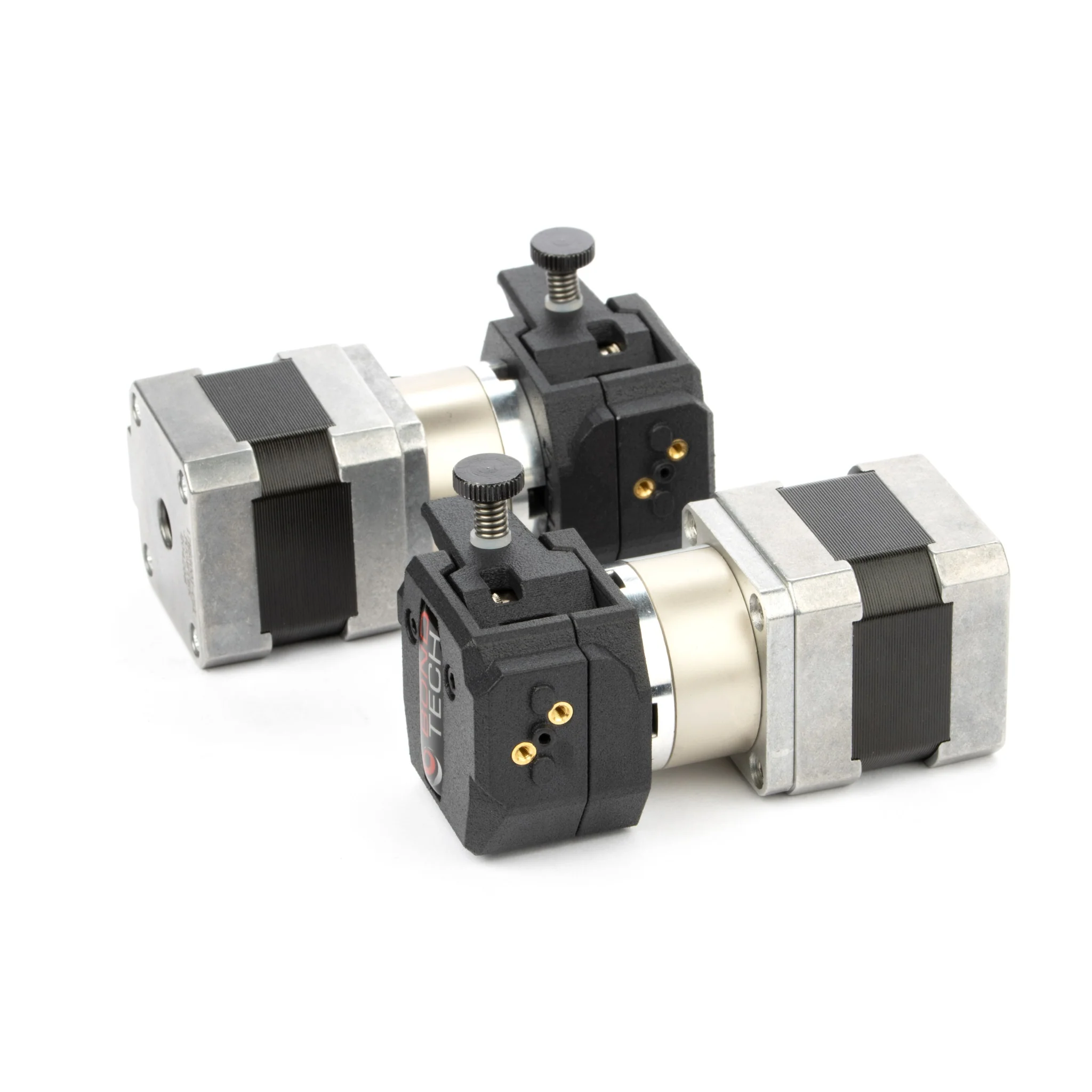

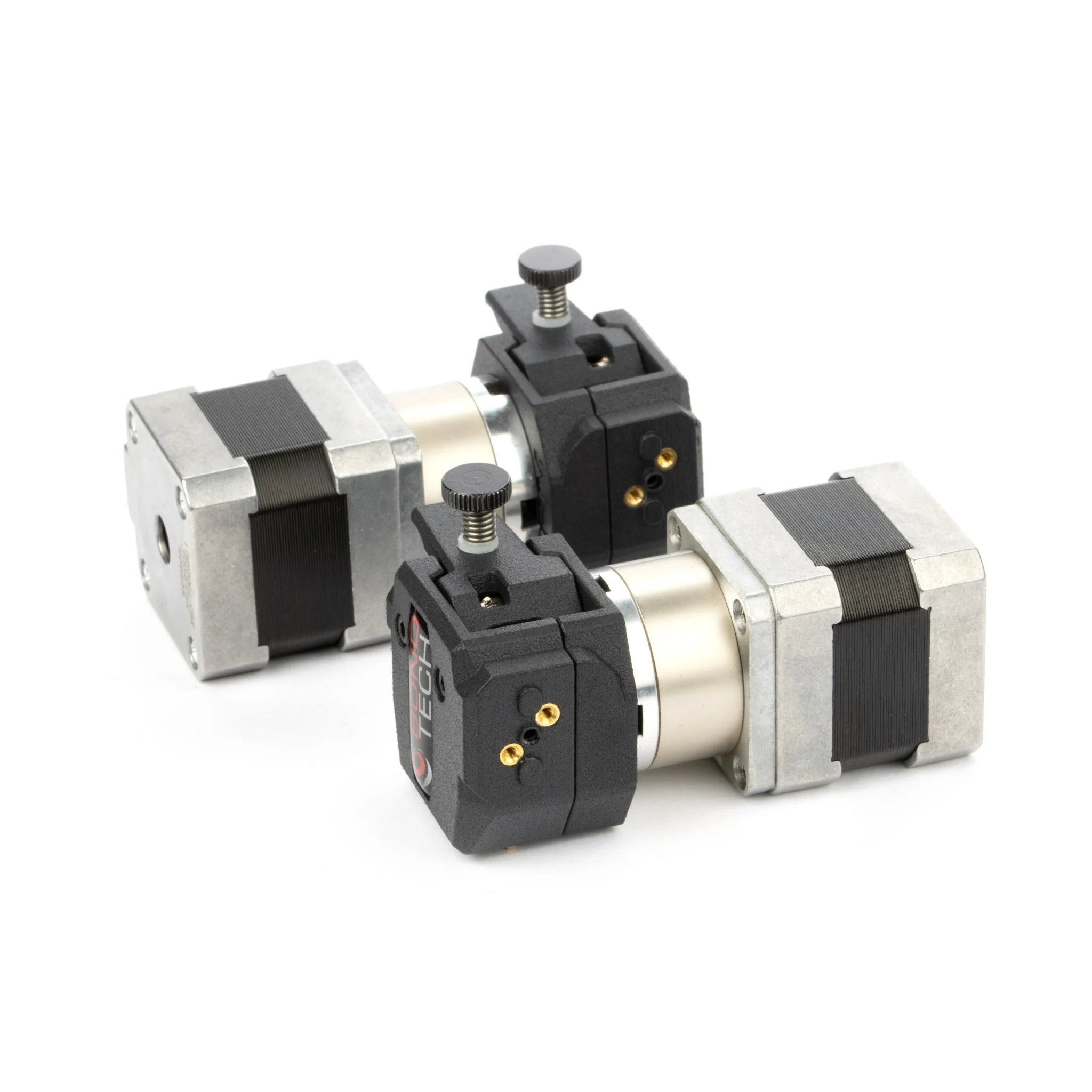

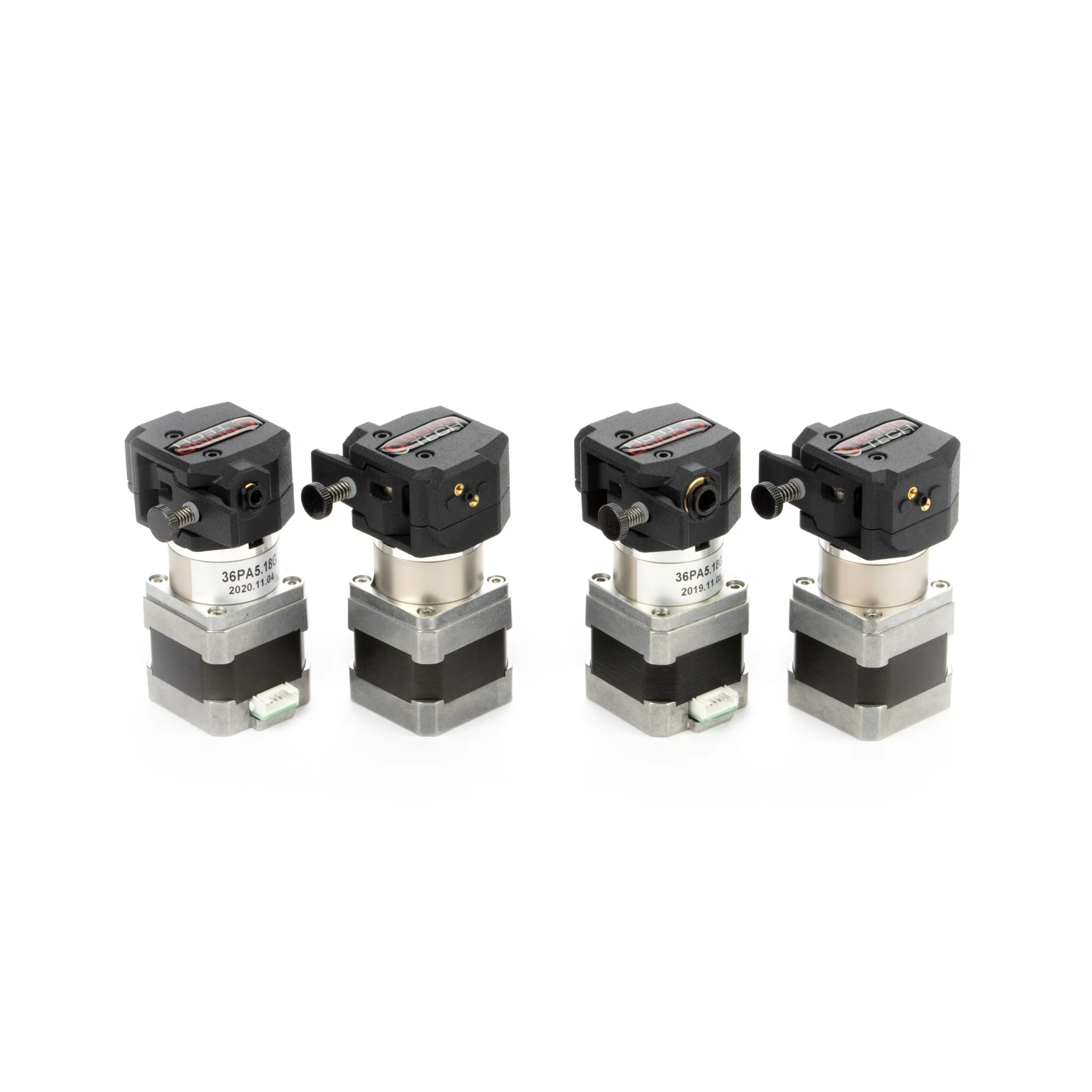

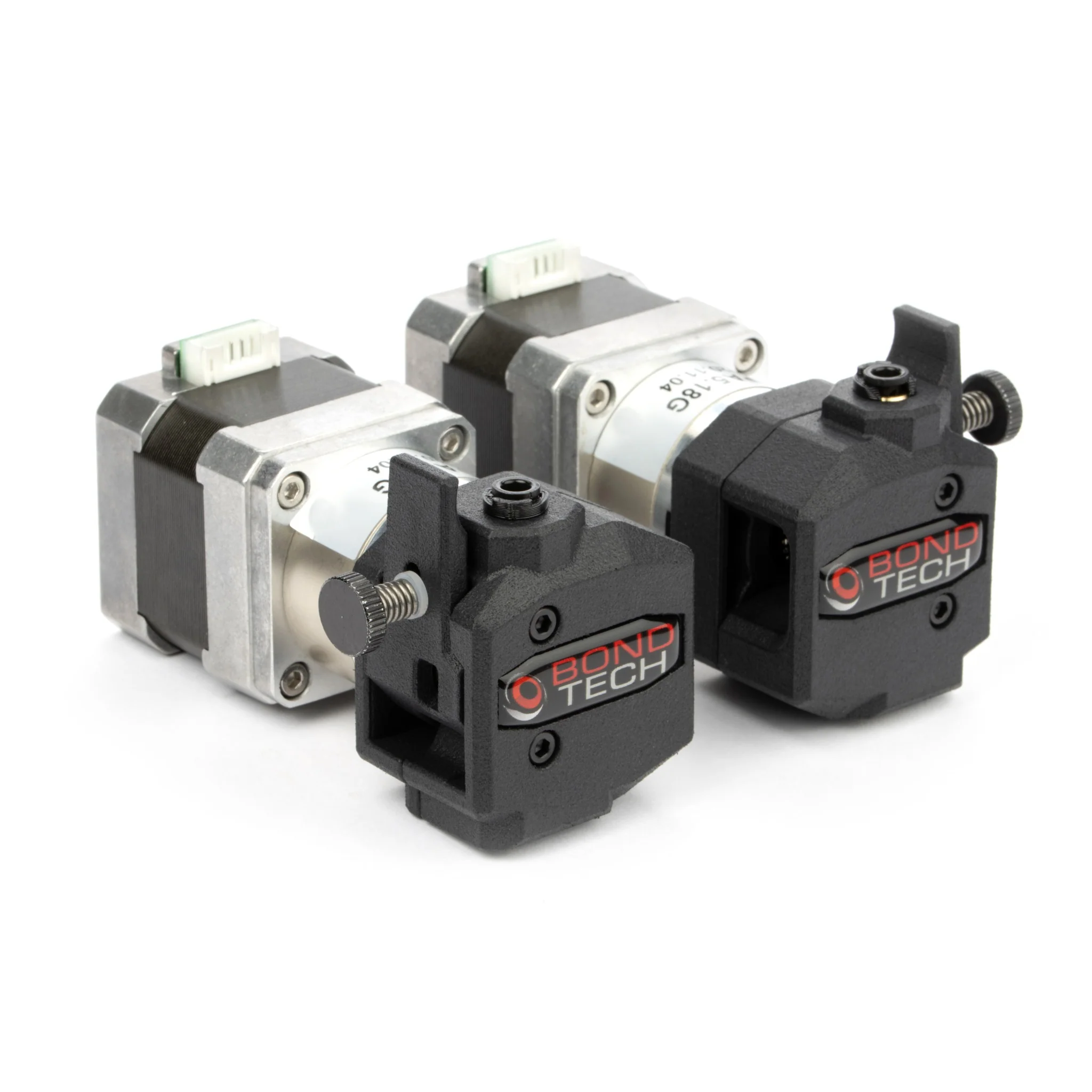

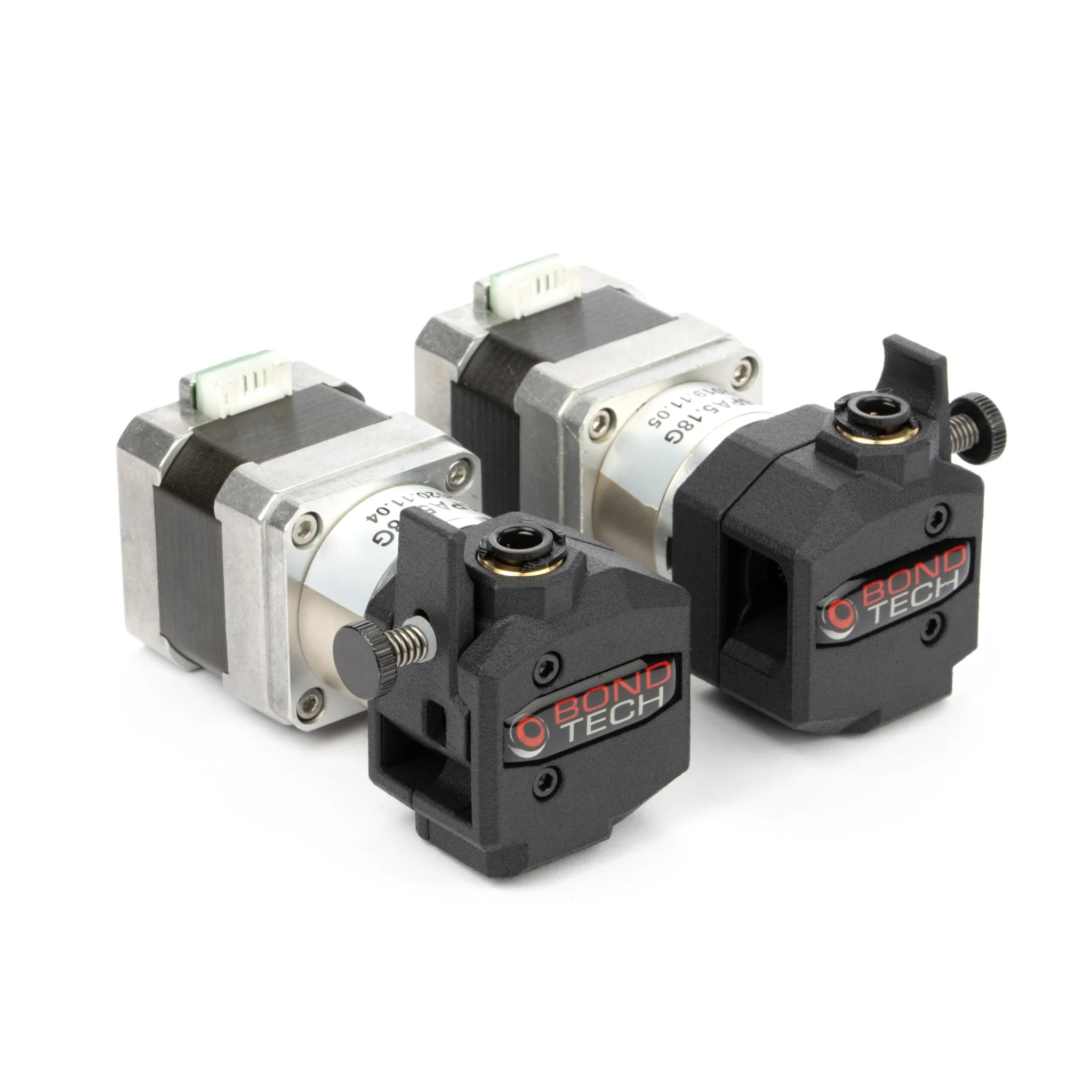

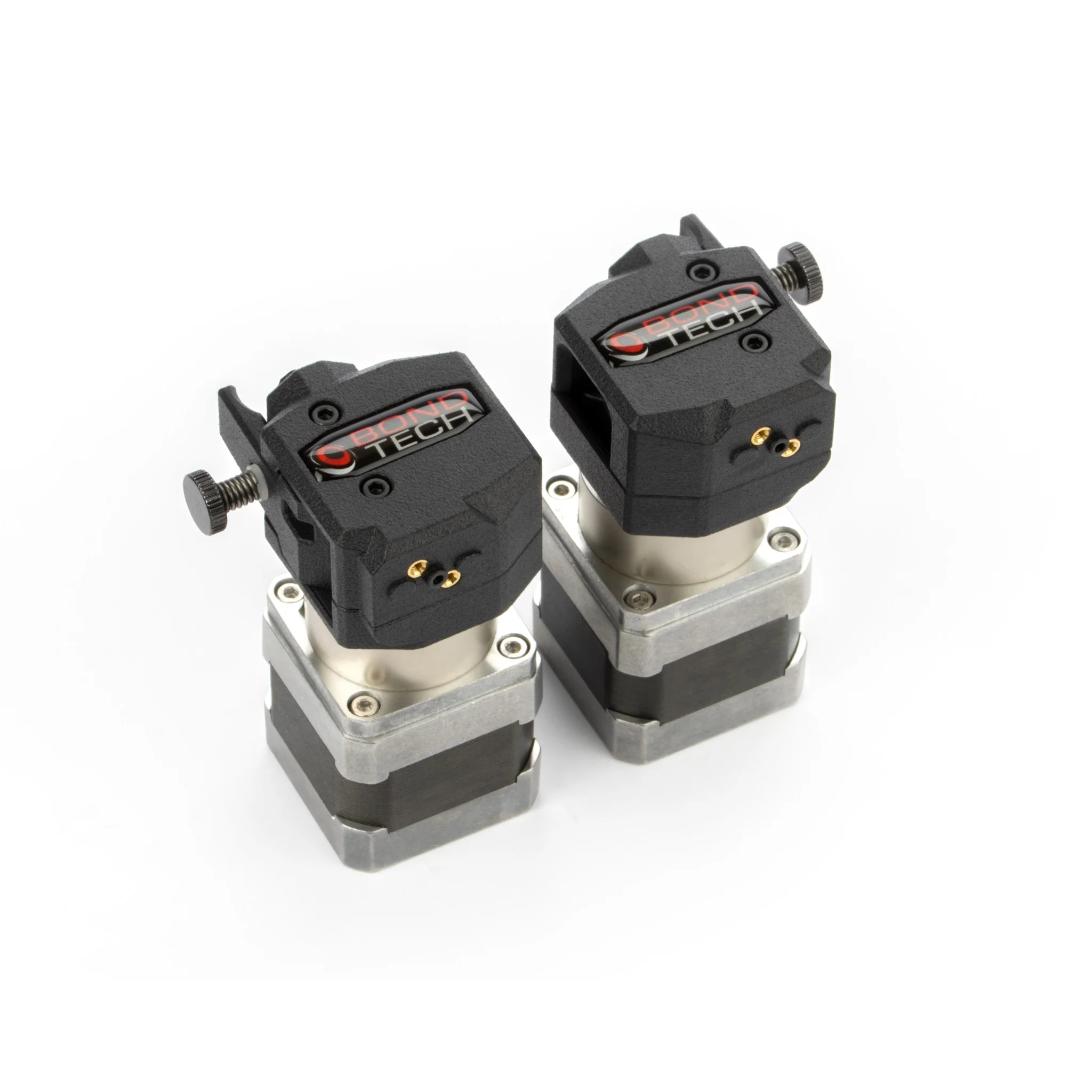

The QR-M Extruder comes in 4 different configurations to accommodate Standard (right-handed) and Mirrored (left-handed) orientations and provides the option for 1.75 mm and 2.85/3.00 mm filament diameters.
Build Quality
The housing parts are professionally SLS printed in nylon for maximum strength and precision. Also, a 700 mm cable with JST-PH6 to PC2510 quick-connectors is included.

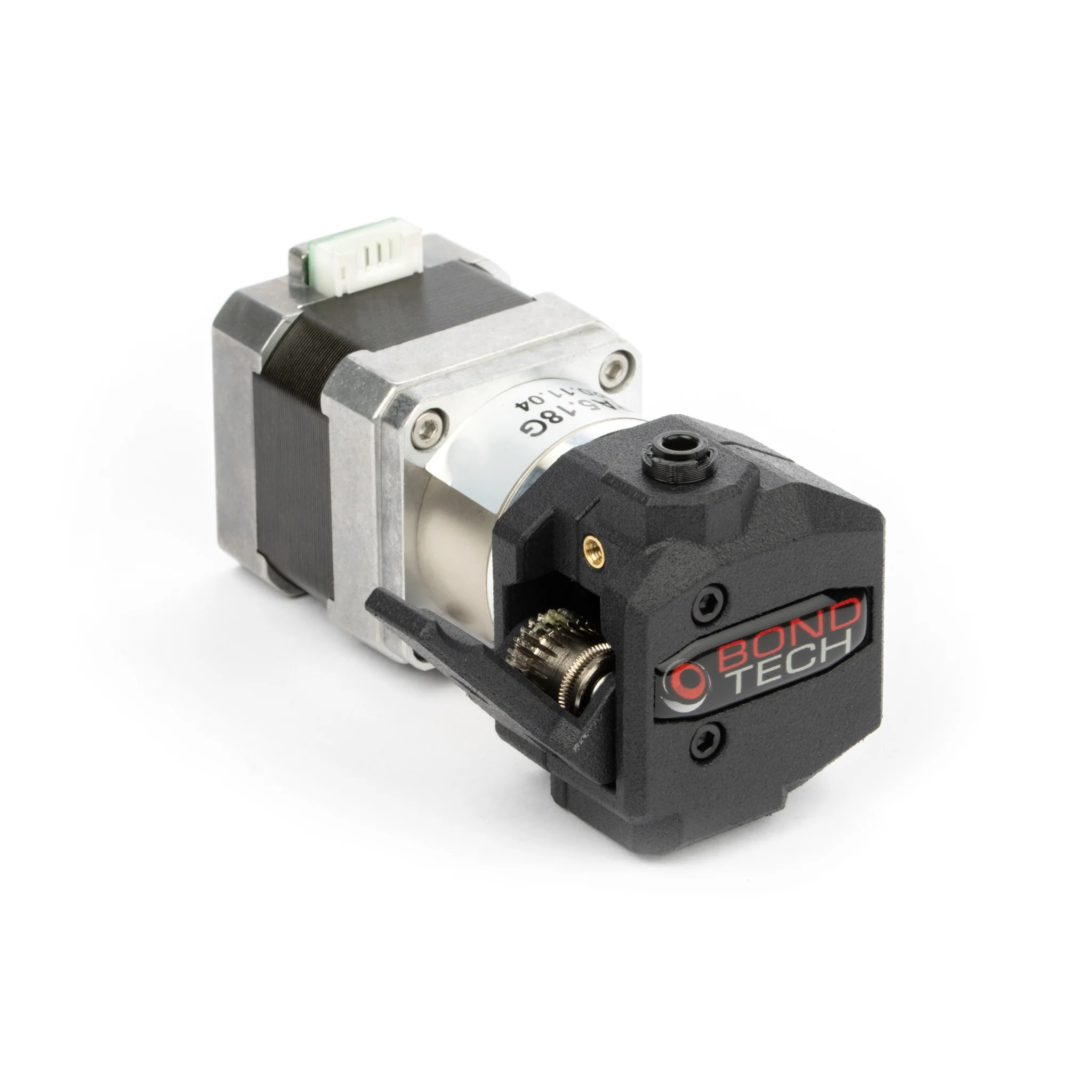

The Bondtech QR-M utilizes a Nema17 stepper motor with an integrated planetary gear reducer with a 5:1 gear ratio. By combining these features with precision CNC-machined hardened steel drive gears, the QR-M Extruder gives you a compact powerhouse for all your applications. Whether you require high-resolution prints with small nozzles or high-flow prints with big nozzles, the optimized gearing ratio, combined with Bondtech's industry-leading drive gears, provides unparalleled pushing power and lightning-fast retractions in a lightweight and compact package.
Bondtech Dual-Drive
Bondtech's unique Dual-Drive technology delivers uninterrupted material flow without fear of grinding or slipping in even the most demanding conditions. Bondtech users all over the world will attest that even in prints with thousands of retractions, Bondtech extruders perform flawlessly with unmatched precision and zero damage or degradation to the filament.
Multi-Material Capability
The QR-M extruder feeds all material with high reliability from slippery nylons and soft TPU/TPE filaments to highly rigid and sometimes brittle carbon-filled high-strength materials. The extruder is designed for 1.75 or 2.85/3.00 mm filaments, but has been tested to ensure the performance of filament with a widespread diameter for high reliability regardless of the tolerance of the filament used. The filament path is fully guided throughout the extruder body and the housing maintains tight tolerances to the drive gears mitigating the chances of filament misfeed when the hotend experiences increased backpressure or highly flexible filaments are used.
Adjustable Tension
The thumbscrew tensioner allows you to fine-tune the pressure exerted by the drive gears onto the filament. This gives you the power to adjust the pressure according to your preferences and to optimize for the type of material you are using.

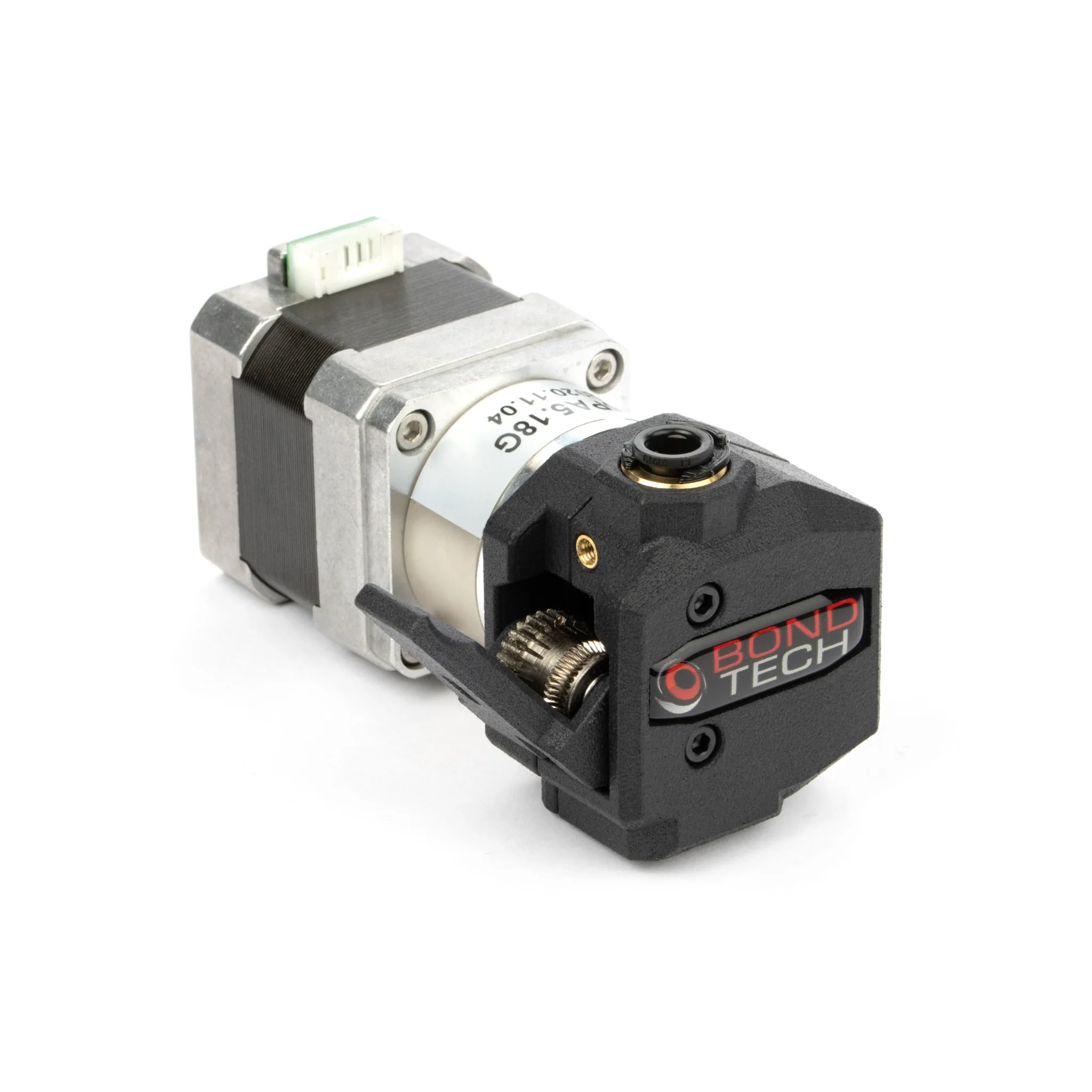

Quick-Release
To be able to do material changes in a snap, simply activate the Quick-Release lever to release the tension and pull the material to be changed out of the extruder. While keeping the lever activated, insert the new material.
Feeding Direction
The QR-M feeds material with equal force in both directions so it's flexible when it comes to integrating with your application.
Product Specifications
Each unit comes assembled, tested, and verified for optimal performance. Recommended motor current setting: 1.2A
E-steps setting: 476.5 (1.75mm) (492.45 2.85 mm) steps/mm
This extruder does not come with a mount. A printable mount is available here. In most instances, custom mounts will be required. If using the available printer mount, you will need QTY:2 M5x10 low-head socket screws and M5 threaded inserts.
Original: $155.00
-70%$155.00
$46.50More Images
